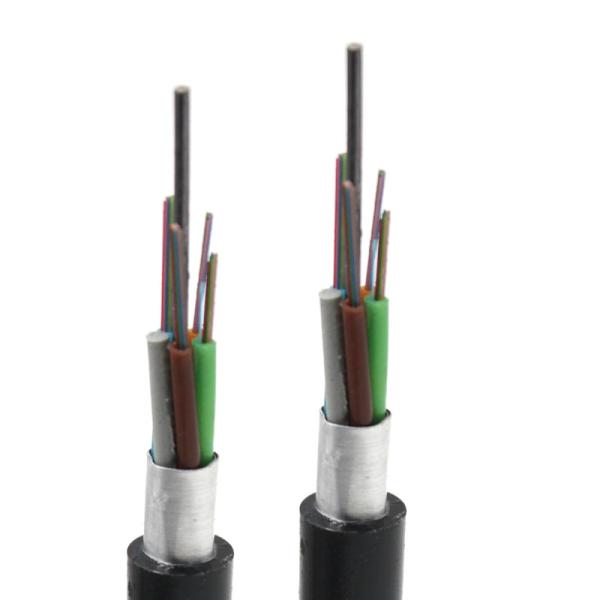

GYTA Outdoor Fiber Optic Cable Jelly Gel Waterproof Filling Metallic G652D G657A1 G675A2

  • 1
  • 2
  • 3

Brand Name : Hochiry

Model Number : GYTA

Certification : CE/ROHS/ISO9001/ANATEL

Place of Origin : CHINA

MOQ : 10000 meter

Payment Terms : T/T, Western Union, MoneyGram

Product Name : Underground Fiber Cable

Fiber Options : G652D ,G657A,OM1,OM2,OM3,OM4

Strength member : Fiberglass reinforced Platic (FRP) or steel wire

Jacket : PE

Fiber Count : 2-288cores

Contact Now

GYTA Jelly Gel Waterproof Filling Metallic G652d G657a1 G675a2


Product description:

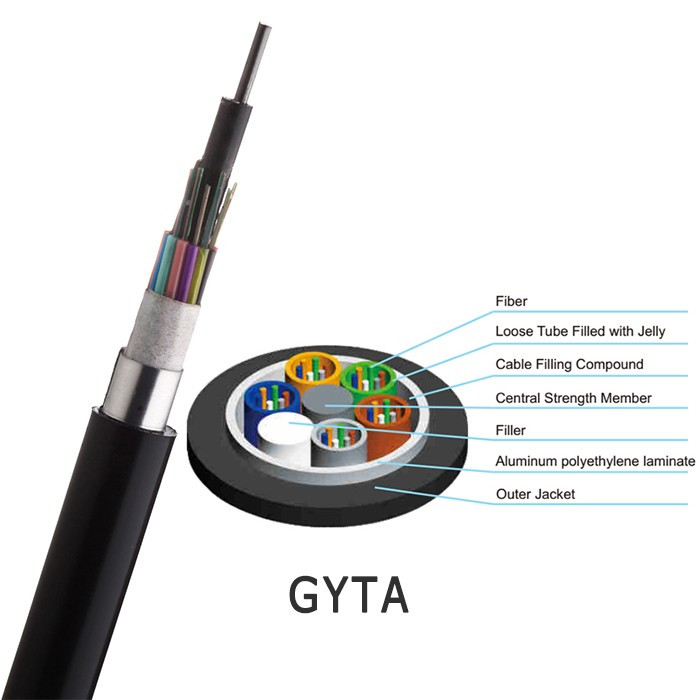

GYTS/A ,the fibers are positioned in the loose tube made of high modulus polyester.each loose tube is stranded arounded a steel wire located in the center of core as a metallic strength member ,the cable core is filled with water resistance
compound.corrugated steel tape is laminated at both side and bonded to PE outer jacket .

Characteristics:
1. The loose tube filled with moisture-proof and water blocking compound ensue impermeable
2. Excellent mechanical and enviromental performance
3. Metal strength member provides excellent strain performance
4. Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, It ensures not only radial
moisture-proof but also reinforces the crush resistance of fiber optical cable

Application:
Long-distance telecom, LAN in high-voltage area or access to telecom network

GYTA cable is suitable for aerial or duct installation
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods

Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

Performance :
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D
Installation: Suitable for aerial or duct
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.

Technical Parameters:

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm kg/km N N/100mm mm
GYTA-2~6 2~6 1 4 9.7 90 600/1500 300/1000 10D/20D
GYTA-8~12 8~12 2 3 9.7 90 600/1500 300/1000 10D/20D
GYTA-14~18 14~18 3 2 9.7 90 600/1500 300/1000 10D/20D
GYTA-20~24 20~24 4 1 9.7 90 600/1500 300/1000 10D/20D
GYTA-26~30 26~30 5 0 9.7 90 600/1500 300/1000 10D/20D
GYTA-32~36 32~36 6 0 10.2 104 1000/3000 300/1000 10D/20D
GYTA-38~48 38~48 4 1 11 117 1000/3000 300/1000 10D/20D
GYTA-50~60 50~60 5 0 11 117 1000/3000 300/1000 10D/20D
GYTA-62~72 62~72 6 0 11.5 126 1000/3000 300/1000 10D/20D
GYTA-74~84 74~84 7 1 13.4 154 1000/3000 300/1000 10D/20D
GYTA-86~96 86~96 8 0 13.4 154 1000/3000 300/1000 10D/20D
GYTA-98~108 98~108 9 1 14.8 185 1000/3000 300/1000 10D/20D
GYTA-110~120 110~120 10 0 14.8 185 1000/3000 300/1000 10D/20D
GYTA-122~132 122~132 11 1 16.9 228 1000/3000 300/1000 10D/20D
GYTA-134~144 134~144 12 0 16.9 228 1000/3000 300/1000 10D/20D
GYTA-146~216 146~216 16.9 233 1000/3000 300/1000 10D/20D


GYTA Outdoor Fiber Optic Cable Jelly Gel Waterproof Filling Metallic G652D G657A1 G675A2

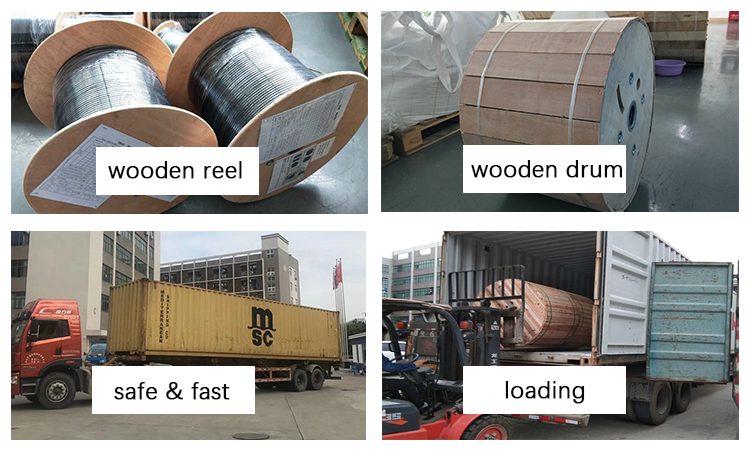

Package and Delivery
GYTA Outdoor Fiber Optic Cable Jelly Gel Waterproof Filling Metallic G652D G657A1 G675A2
GYTA Outdoor Fiber Optic Cable Jelly Gel Waterproof Filling Metallic G652D G657A1 G675A2
