SC UPC FTTH Drop Fiber Optic Cable Patch Cord Self Supporting G657A2

Brand Name : Hochiry

Model Number : GJYXFCH drop fiber optic cable

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 100 Roll

Price : 0.07USD/Meter

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 3-5 days

Packaging Details : 100M per Roll

Fiber type : G652D ,G657A , G657A2

Cable Structure : Self-support tight buffer

Installation tensile : 1200N

Strength member : FRP (Fiber glass reinforced plastic)

Material of jacket : UV and Flame resistant LSZH

Fiber Amount : 1 fiber

Contact Now

FTTH Round Flat Indoor Outdoor G657a Ftth Sc Upc Drop Cable Patch Cord

Description:

The FTTH patch cord Can be divided into two kinds:FTTH indoor patch cord and FTTH outdoor patch cord. The FTTH indoor Pre-terminated patch cable comes with indoor Drop cable.The FTTH outdoor Pre-terminated patch cable comes with FTTH Flat Aerial Self-Supported Drop cable. It can be installed conveniently and operated simply. Hochiry can supply FTTH pre-terminated patch cables with SC/FC/LC connectors.

Feature

Low insertion loss, high return loss
High environmental stability
Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*5.2mm
For FTTH outdoor patch cord : FTTH Cable Self-Supported member: 1.0; 1.2 mm Steel wire
Connector Types: LC, FC, SC
Fiber Mode: Single mode G.657A1, G657A2, G657B3
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
Good exchangeability; Good Durability
High temperature stability
Compliant to IEC, TIA/EIA, NTT and JIS specifications

Drop Cable Patch Cord Specification:

Cable Type
FTTH Drop Cable
Construction
Self-supporting
Outer Jacket Material
LSZH (Black/White)
Cable Diameter
(2.±0.2)×(5.0±0.2)mm
Tensile Strength (long/short term)
100/200N
Bending Radius (long/short term)
10D/20D (mm)
Fiber Count
1 or 2Fibers
Fiber Type
Singlemode G.657A
Strength Member Material
FRP
Cable Weight
20kg/km
Crush Load (long/short term)
300/1000 (N/100mm)
Operating/Storage Temperature
-40 to +60℃

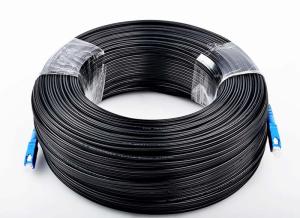

Drop Cable Patch Cord Details

SC UPC FTTH Drop Fiber Optic Cable Patch Cord Self Supporting G657A2

SC UPC FTTH Drop Fiber Optic Cable Patch Cord Self Supporting G657A2SC UPC FTTH Drop Fiber Optic Cable Patch Cord Self Supporting G657A2SC UPC FTTH Drop Fiber Optic Cable Patch Cord Self Supporting G657A2
