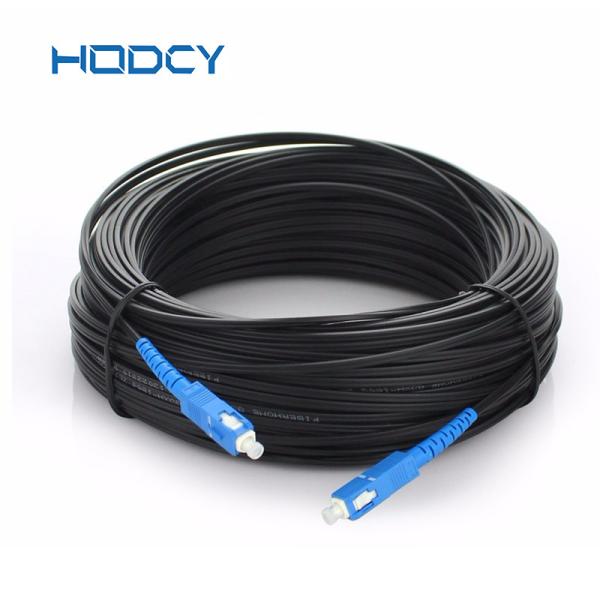

Outdoor 1 2 Core FTTH Drop Cable G657A1 1 Fiber With Connector

  • 1
  • 2
  • 3

Brand Name : Hochiry

Model Number : FTTH Drop Cable Patch Cord

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 100 Roll

Price : 0.07USD/Meter

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 3-5 days

Packaging Details : 100M per Roll

Fiber type : G652D ,G657A ,G657A2

Cable Structure : Self-support tight buffer

Installation tensile : 1200N

Material of jacket : UV and Flame resistant LSZH

Strength member : FRP (Fiber glass reinforced plastic)

Fiber Amount : 1 fiber

Contact Now

Indoor Outdoor 1 2 4 Core G657A1 FTTH Fiber Optic Drop Patch Cord Cable With Connector

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Feature

1, Self-supporting structure, light weight, easy to install

2, Durable and flame retardant LSZH sheath, low smoke zero halogen

3, Steel wire as additional strength member has high tensile strength

4, Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance

5, Outdoor aerial application

6, Used in the FTTH projects

7, High speed optical routes in building

8, High performance optical network operation

Drop Cable Patch Cord Specification:

Cable Type
FTTH Drop Cable
Construction
Self-supporting
Outer Jacket Material
LSZH (Black/White)
Cable Diameter
(2.±0.2)×(5.0±0.2)mm
Tensile Strength (long/short term)
100/200N
Bending Radius (long/short term)
10D/20D (mm)
Fiber Count
1 or 2Fibers
Fiber Type
Singlemode G.657A
Strength Member Material
FRP
Cable Weight
20kg/km
Crush Load (long/short term)
300/1000 (N/100mm)
Operating/Storage Temperature
-40 to +60℃

Drop Cable Patch Cord Details

Outdoor 1 2 Core FTTH Drop Cable G657A1 1 Fiber With Connector

Outdoor 1 2 Core FTTH Drop Cable G657A1 1 Fiber With ConnectorOutdoor 1 2 Core FTTH Drop Cable G657A1 1 Fiber With ConnectorOutdoor 1 2 Core FTTH Drop Cable G657A1 1 Fiber With Connector
