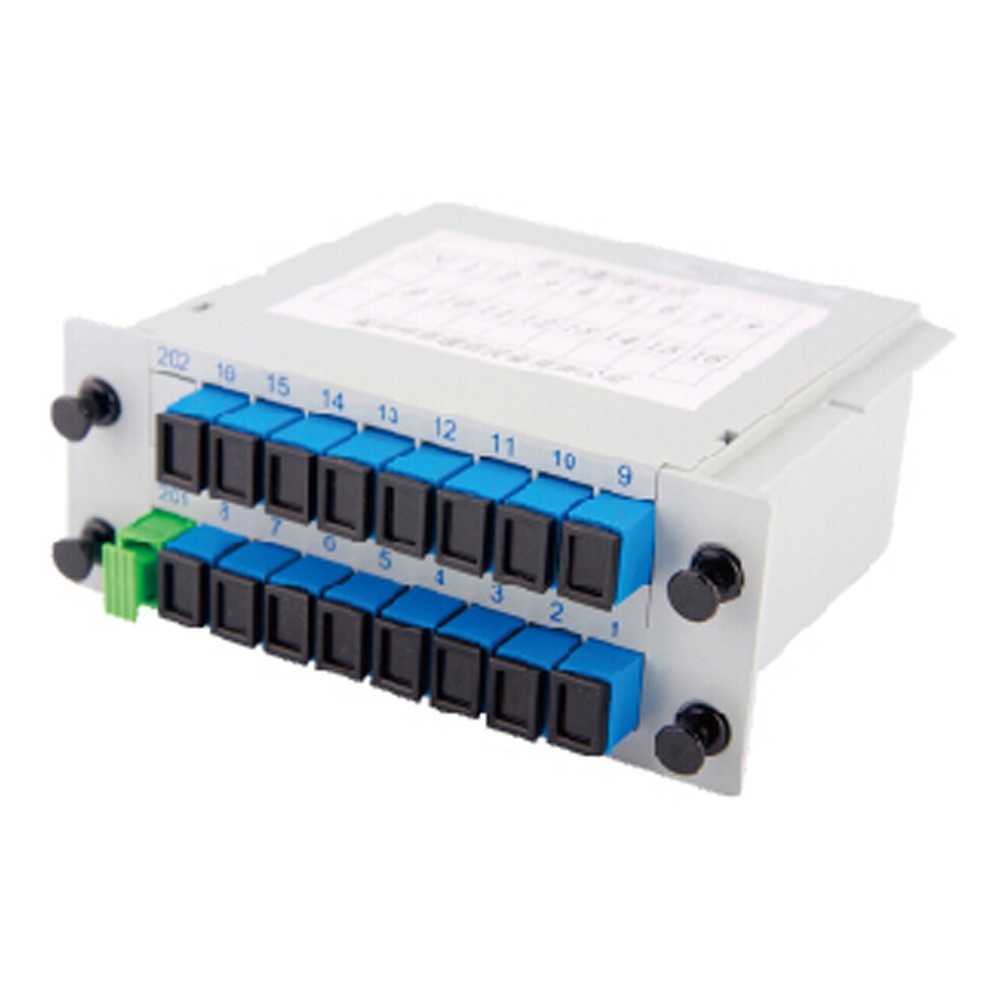

SC/APC Fiber optic PLC Splitter 1x16 DIN 1X16-PLC Single Mode Length Customized

Name: SCAPC Fiber optic PLC Splitter 1x16 DIN 1X16PLC Single Mode Length Customized
Brand: Hochiry
Price: 6.0 USD

Quality SC/APC Fiber optic PLC Splitter 1x16 DIN 1X16-PLC Single Mode Length Customized wholesale

Brand Name : Hochiry

Model Number : DIN 1X16-PLC SC/UPC

Certification : CE ROHS FCC

Place of Origin : CHINA

MOQ : 100PCS

Price : 6.0USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : 1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS

Product name : Cassette Type Optical PLC Fiber Splitter

Application : FTTX, FTTH Network

Connector : SC/APC

Fiber Type : G657A1,G657A2,G652D

Branchs : 1x8

Wavelength : 1260nm-1650nm

Cable : 0.9/2.0/3.0 mm

Storage temperature : - 45~+85℃

Insertion loss : ≤0.1dB

Return loss : ≥55dB

Specs : DIN 1X16-PLC SC/UPC, G.657A, Ф900um, 1M

Fiber Mode : Single Mode

Fiber Length : 1m or Customized

Contact Now

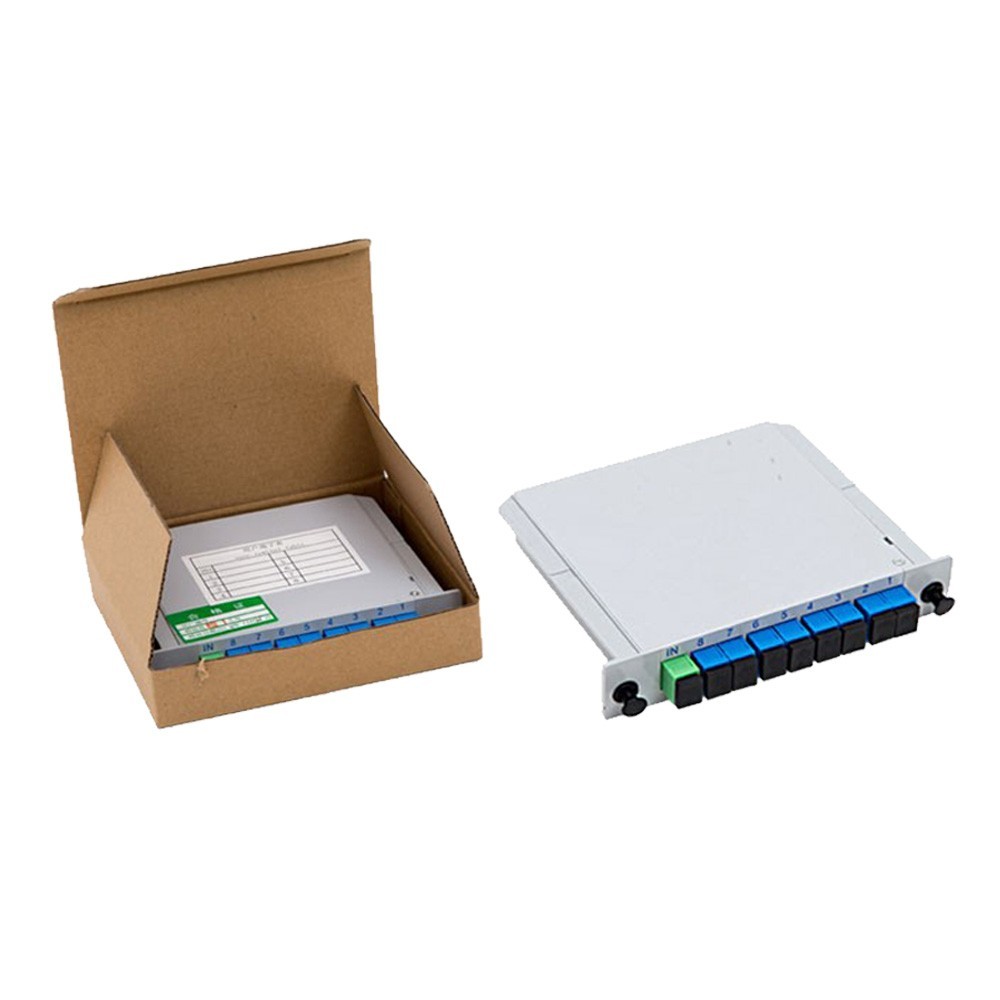

DIN 1X8-PLC SC/UPC LGX Modulized Splitter Insert Cassette Type Optical PLC Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

ABS Cassette PLC Splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(Outdoor Fiber Distribution Box) or network cabinets.

Insert Cassette Type Optical PLC Fiber Splitter Product Application

1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems

Insert Cassette Type Optical PLC Fiber Splitter Product Advantages

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Good delivery time 5-7days
Good product capacity: 20000pcs connector each day

Insert Cassette Type Optical PLC Fiber Splitter Specification

Cassette Type Optical PLC Fiber Splitter technical specifications
Model name	PSM 1X16PLC SC/UPC
Wavelength(nm)	1260-1650
Free Sample	YES
Material	PVC;ABS
Design	OEM & ODM
Connectors	FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
Connectors	fiber optic connectors are available
Parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss (dB)	≥50
Directivity (dB)	≥55
Temperature Range (°C)	-40~+75
Storage Temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.
