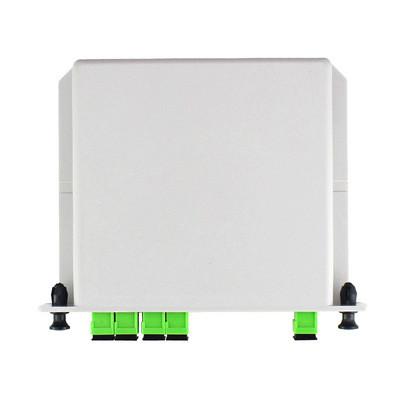

Low PDL Fiber Optic PLC Splitter DIN 1X4 Single Mode OEM / ODM

Name: Low PDL Fiber Optic PLC Splitter DIN 1X4 Single Mode OEM ODM
Brand: Hochiry
Price: 6.0 USD

Quality Low PDL Fiber Optic PLC Splitter DIN 1X4 Single Mode OEM / ODM wholesale

Brand Name : Hochiry

Model Number : DIN 1X4-PLC SC/APC

Certification : CE ROHS FCC

Place of Origin : CHINA

MOQ : 100PCS

Price : 6.0USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : 1PCS: 26*22*4cm ; 50PCS :65*43*38cm/9.38KGS

Product name : Cassette Type Optical PLC Fiber Splitter

Application : FTTX, FTTH Network

Connector : SC/APC

Fiber Type : G657A1,G657A2,G652D

Branchs : 1x4

Wavelength : 1260nm-1650nm

Cable : 0.9/2.0/3.0 mm

Storage temperature : - 45~+85℃

Insertion loss : ≤0.1dB

Return loss : ≥55dB

Specs : DIN 1X4-PLC SC/APC, G.657A, Ф900um, 1M

Fiber Mode : Single Mode

Fiber Length : 1m or Customized

Contact Now

DIN 1X4 PLC SC APC Fiber Optic PLC Splitter 1*4 Type Cassette PLC Fiber Optic Splitter

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. HODAS’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Insert Cassette Type Optical PLC Fiber Splitter Product Advantages:

1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength:From 1260nm to 1650nm
6) Wide Operating Temperature: From -40°C to 85°C
7) High Reliability and Stability

Insert Cassette Type Optical PLC Fiber Splitter Specification

Cassette Type Optical PLC Fiber Splitter technical specifications
Model name	PSM 1X4 PLC SC/APC
Wavelength(nm)	1260-1650
Free Sample	YES
Material	PVC;ABS
Design	OEM & ODM
Connectors	FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
Connectors	fiber optic connectors are available
Parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss (dB)	≥50
Directivity (dB)	≥55
Temperature Range (°C)	-40~+75
Storage Temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.

Insert Cassette Type Optical PLC Fiber Splitter Product Application

1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems
