Waterproof MC4 Solar Extension Cable / 12AWG Solar Adaptor Cable

Name: Waterproof MC4 Solar Extension Cable 12AWG Solar Adaptor Cable
Brand: Hochiry
Price: 1 USD

Quality Waterproof MC4 Solar Extension Cable / 12AWG Solar Adaptor Cable wholesale

Brand Name : Hochiry

Model Number : PV1500

Certification : TUV&UL

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : 1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg

Product name : Solar Adaptor Cable

Conductor material : Tinned copper strands

Jacket : XLPO/XLPE/PVC/PE

Rated voltage : AC 600/1000V DC 1000/1800V

Core : Multi-core

Conductor : tinned copper conductor

Standard : IEC60502

Flame test according to : DIN EN 50265-2-1 UL 1571(VW-1)

Application : Application

Contact Now

Mc4 Connector Waterproof Solar Photovoltaic Extension Cable 12AWG Solar Adaptor Cable

Product Features:

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

Description:

Rated Voltage: DC 1500V
Ambient Temperature: -40ºC--90ºC Max. Temperature at Conductor 120ºC:
Conductor: Tin-Plated copper, Class5
Insulation: 125ºC XLPE
Jacket: 125ºC XLPE
Color: Black
Marking: FRCABLE IEC 62930 DC 1.5KV, 1X4.0mm2 Meter marking

Product Name	Mc4 Connector Waterproof Solar Photovoltaic Extension Cable 12AWG Solar Adaptor Cable
Insulation Material	PPO
Contact Material	Copper,Tin plated
Connector	Solar Panel Connector
Wire Color	Black/Red
Wire Gauge	2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG)
Rated Current	30A(2.5mm2),50A(4mm2,6mm2)
Rated Voltage	1000V/1500V DC
Test Voltage	8kV(50Hz,1min)
Wire Length	1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized
Waterproof protection	IP68
Delivery Time	5-10 working days
Application	Suitable for Generator, Solar Panel system.
Package	Bulk Packing, we accept custom packing

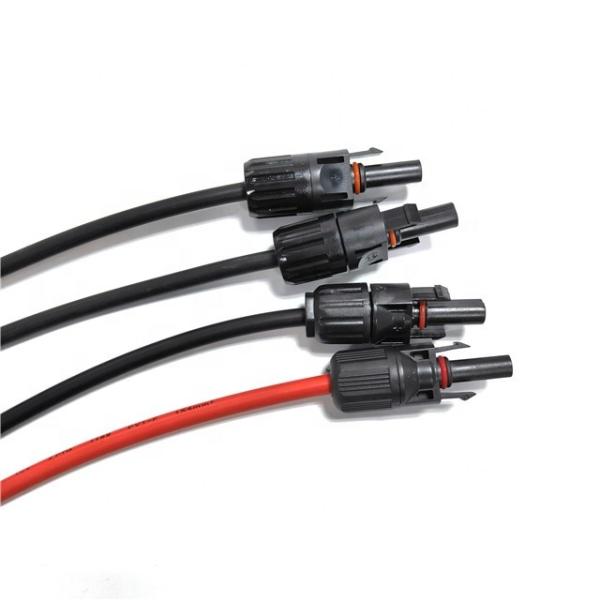

Product Picture

Waterproof MC4 Solar Extension Cable / 12AWG Solar Adaptor Cable
